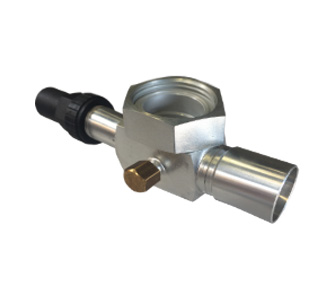

AWA Rotalock valves HFC / HFO

Connections: UNF, ODS
Suitable for: R134a, R513A, R449A, R407C, R407F, R404A, R507 and R410A
Maximum pressure (PS): 45 bar
Temperature range (TS): -10 to +140 ºC *

Choose the type(s) you need and add to RFQ.
We will quote you a price within one working day.

  • Returning customers can login to see gross prices.
  • See table below in tabs for specifications of all types.
SKU: N/A Categories: , Tags: , , ,

Description

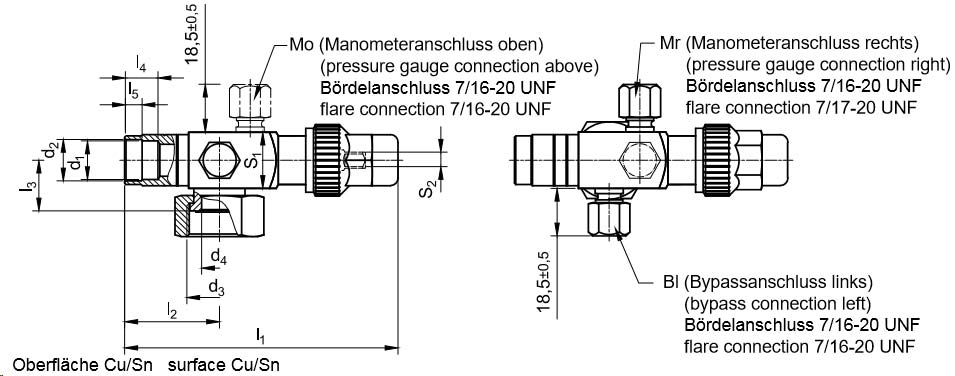

The AWA rotalock valves can be used for example on our liquid receivers and oil reservoirs. They are equipped with two 1/4 “flare service connections. One port is lockable and the other one is non-lockable. Pressure switches must always be connected to a non-lockable port. The Rotalock valves are available with solder connections from 3/8 “to 54 mm.

Please see next tabs for all types and specifications.
