Castel ball valves CO2

Connections: ODS
Suitable for: R744 (CO2)
Maximum pressure (PS): 60 – 140bar
Temperature range (TS): -40 to +150 ºC

Choose the type(s) you need and add to RFQ.
We will quote you a price within one working day.

  • Returning customers can login to see gross prices.
  • See table below in tabs for specifications of all types.
Clear
SKU: N/A Category: Tags: , , ,

Description

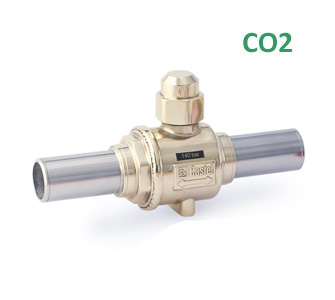

The Castel ball valves CO2 are available in standard manual and motorized version. The motor controlled ball valves are available in through and 3 way versions. The ball valves have a very high Kv value and therefore little resistance. All Castel ball valves are fitted with M4 or M6 tapping holes at the bottom.

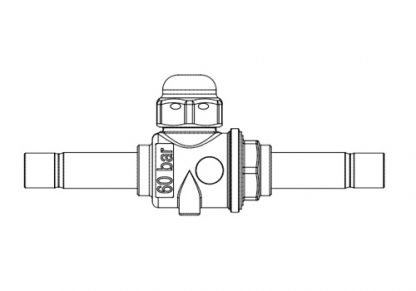

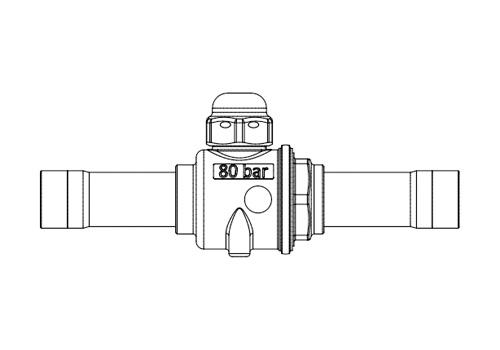

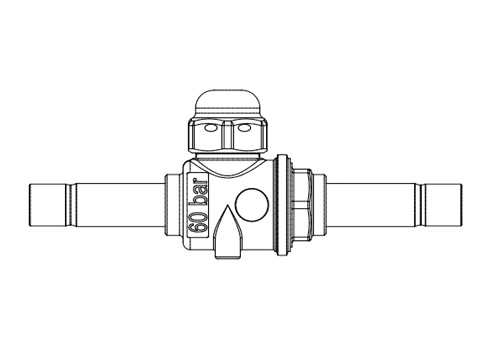

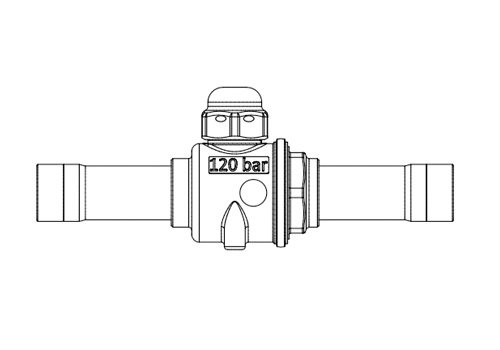

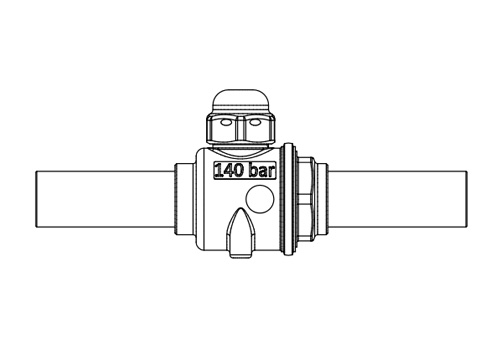

The CO2 ball valves from Castel are available for PS = 60 bar, PS = 80 bar, PS = 120 bar, PS = 140 bar and, depending on this, provided with Cu, K65 or stainless steel connections.

Please see next tabs for all types and specifications.
