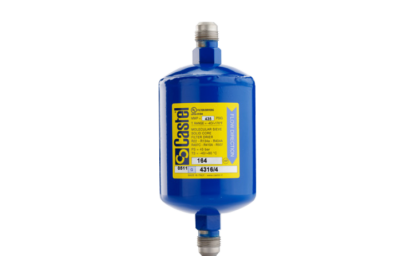

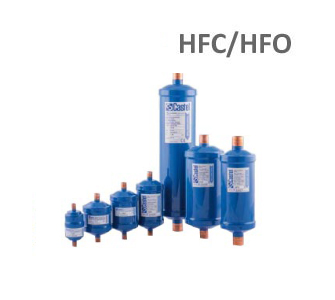

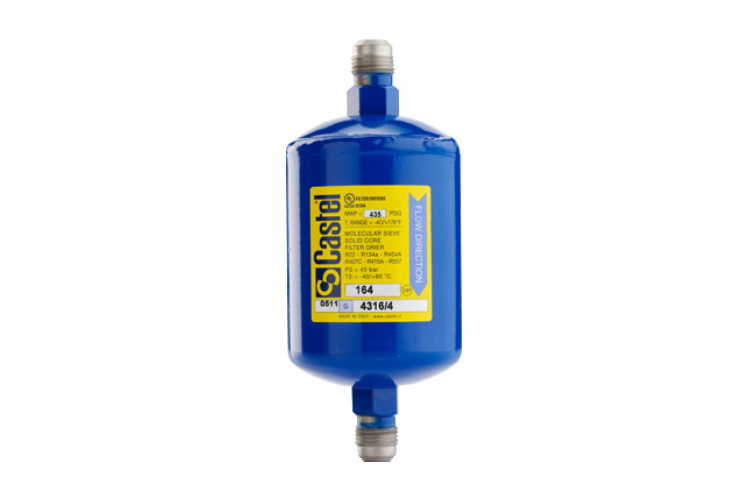

Castel filter drier HFC/HFO

Connections: Flare – male. , ODS
Suitable for: R134a, R513A, R449A, R407C, R407F, R404A, R507 and R410A
Maximum pressure (PS): 45 bar
Temperature range (TS): -40 to +80ºC

Choose the type(s) you need and add to RFQ.
We will quote you a price within one working day.

  • Returning customers can login to see gross prices.
  • See table below in tabs for specifications of all types.
Clear
SKU: N/A Category: Tags: , , ,

Description

The Castel filter dryers for non-corrosive refrigerants are available with both flare and solder connections (connections). They are 100% molecular sieve blocks. The construction of the filter driers is shock-resistant and the block shape is such that the refrigerant flow distributes optimally over the block. This gives the filter drier the highest drying efficiency and the least pressure loss.

Please see next tab for all types and specifications.

Types and connections

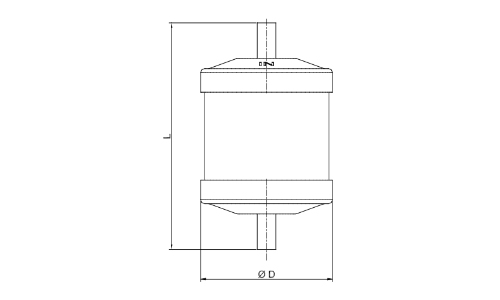

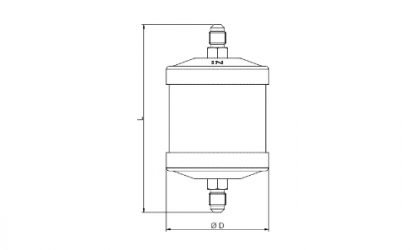

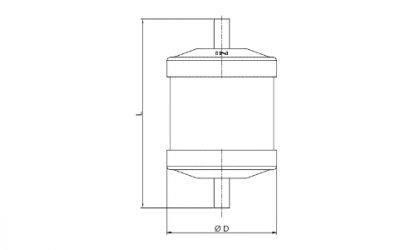

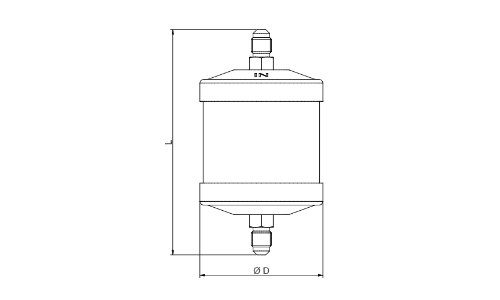

TypeInt. CodeConn.SAE [in.]ODS [in.]PS [bar]TS [°C] min/maxArt. nr.
305/2052flare1/4"-47-40 / +80190320
308/2082flare1/4"-47-40 / +80190330
308/3083flare3/8"-47-40 / +80190335
316/3163flare3/8"-47-40 / +80190350
316/4164flare1/2"-47-40 / +80190355
330/4304flare1/2"-47-40 / +80190370
316/5165flare5/8"-47-40 / +80190360
330/5305flare5/8"-47-40 / +80190375
305/2S052Ssoldeer-1/4"47-40 / +80190420
308/2S082Ssoldeer-1/4"47-40 / +80190430
308/3S083Ssoldeer-3/8"47-40 / +80190435
316/3S163Ssoldeer-3/8"47-40 / +80190445
316/4S164Ssoldeer-1/2"47-40 / +80190450
330/4S304Ssoldeer-1/2"47-40 / +80190470
316/5S165Ssoldeer-5/8"47-40 / +80190455
330/5S305Ssoldeer-5/8"47-40 / +80190475
341/5S415Ssoldeer-5/8"47-40 / +80190495
341/7S417Ssoldeer-7/8"47-40 / +80190505
