REFFLEX DN5.0mm

REFFLEX® is an advanced system of flexible hoses for the refrigeration industry
There are two sizes available, DN-2.0mm, DN-5.0mm. (for larger sizes see COLDLEX®)

DN 5.0mm is mainly used for connecting oil separators and level regulators.

  • Highly flexible, short bending radius.
  • Absorbing all possible multi directional vibrations.
  • Strong and reliable.
  • Easy to use.
  • Factory-made or own production with REFFLEX tools.
  • Ozone, UV and oil resistant.
  • Fittings 1/4 “flare or 3/8” flare.
  • Available in different colors.

Choose the type(s) you need and add to RFQ.
We will quote you a price within one working day.

  • Returning customers can login to see gross prices.
  • See table below in tabs for specifications of all types.
Clear
SKU: N/A Category: Tags: , , ,

Description

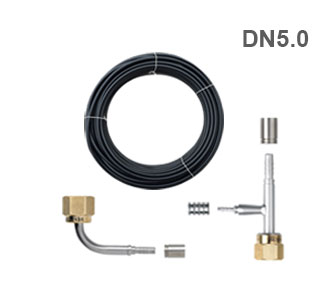

REFFLEX® is the most sophisticated system of polyamide capillary tubing, having excellent mechanical and thermal properties combined with a very high flexibility. It is suitable for all non-corrosive refrigerants such as natural gases such as CO2 and propane and the relevant special oils such as ester- an PAG. DN-5.0 mm flexible tube on coils of 25 Mtr and on coils of 500 Mtr

DN-5.0mm is available in two types:

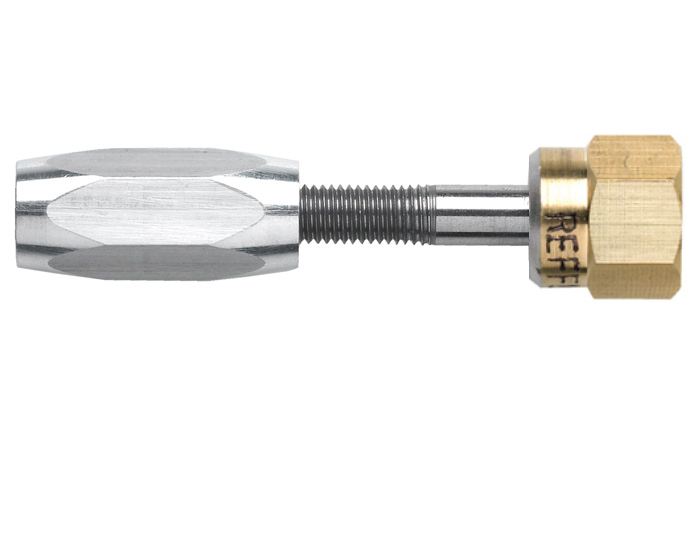

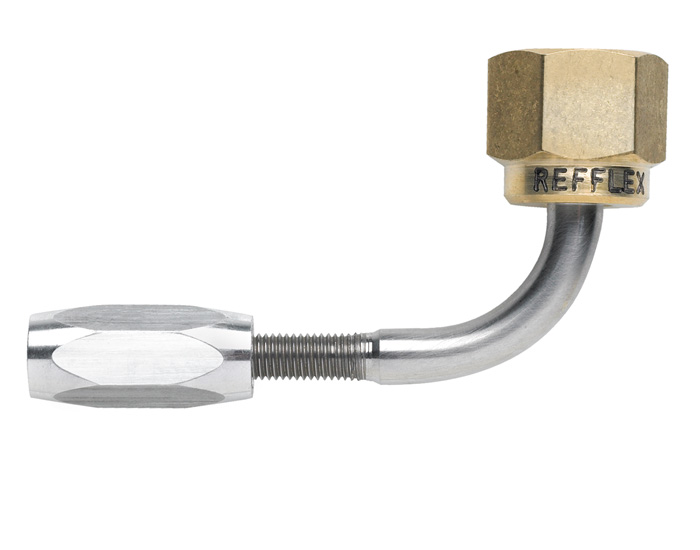

– screw fittings (no tools needed)

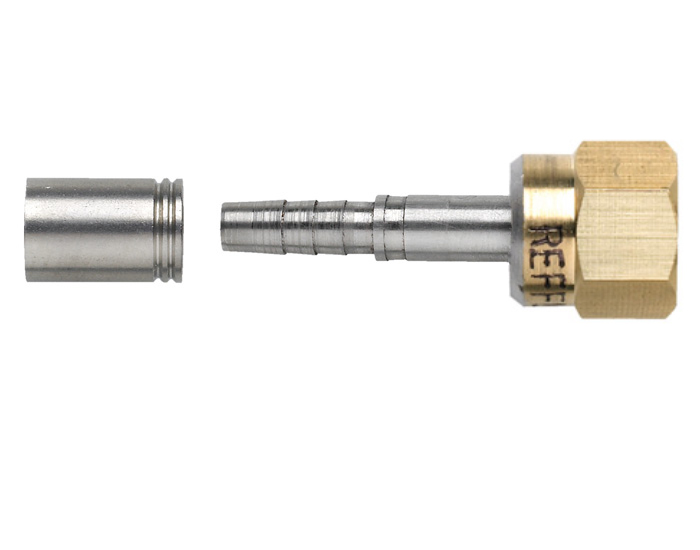

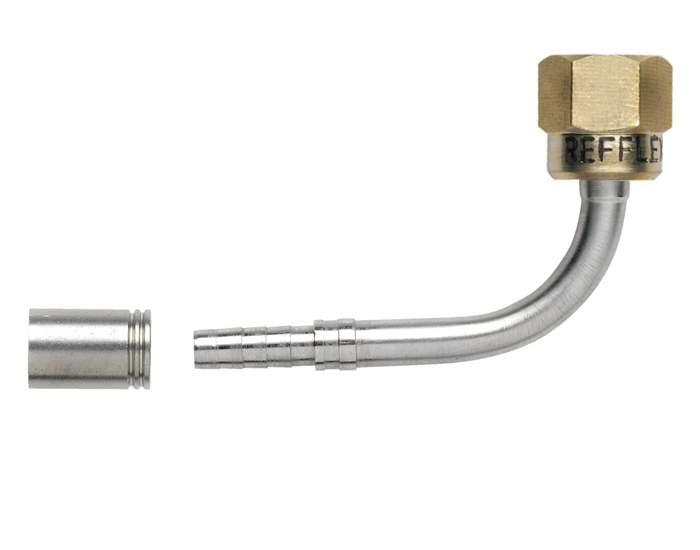

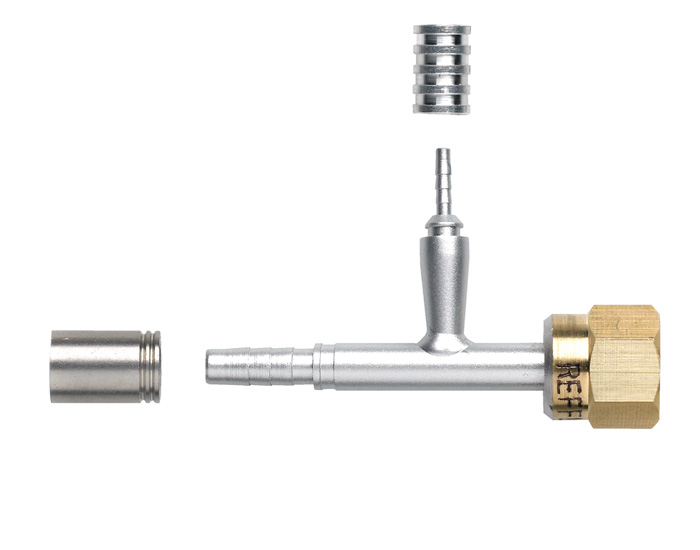

– crimping fittings  (easy to assemble with REFFLEX tools)
– Both types are available in 1/4″ or 3/8″ flare.

Please see next tabs for all types and specifications
