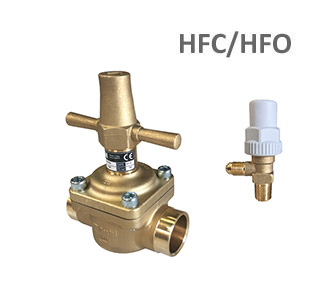

Castel service valves HFC/HFO

Connections: ODS, flare male/male, NPT
Suitable for: R134a, R513A, R449A, R407C, R407F, R404A, R507 and R410A
Maximum pressure (PS): 45 bar
Temperature range (TS): –40/-35 to +110/160 ºC

Choose the type(s) you need and add to RFQ.
We will quote you a price within one working day.

  • Returning customers can login to see gross prices.
  • See table below in tabs for specifications of all types.
Clear

Description

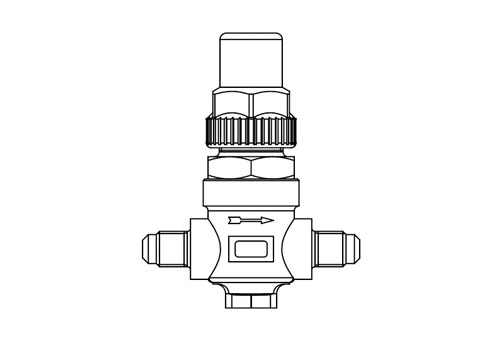

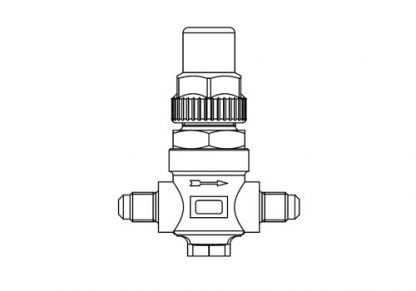

Castel has, apart from the separately specified ball valves, check valves and solenoid valves an extensive range of various other (service) valves. There are service valves with flare, NPT, and ODS connections up to 22mm, for example, to be used as a tank valve, fill valve, manometer valve, valve in oil return pipes etc. This concerns types 6012 / .., 6110 / .., 6410 / .., 6420 / …

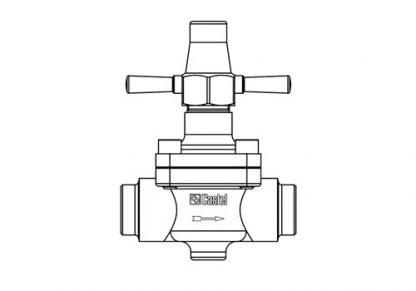

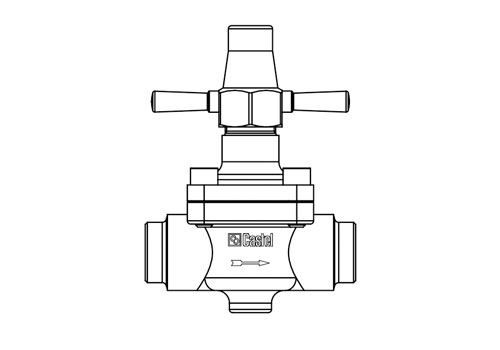

In addition, there are the larger valves, type 6512 / .., with ODS connections from 22 to 54 mm. With these valves the spindle cap is also an operating key to open or close the valve.

Please see next tabs for all types and specifications.

Other valves:
Ball valves
Solenoid valves
Check valves
