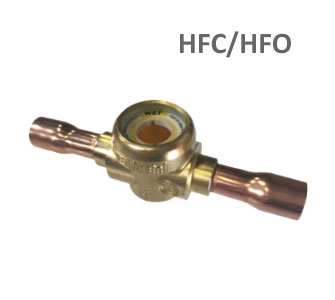

Castel sight glasses HFC/HFO

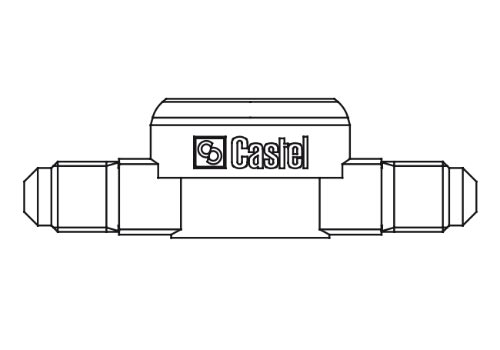

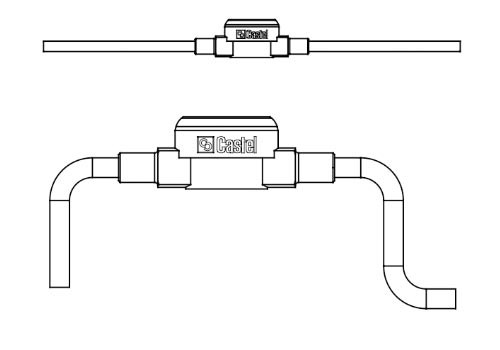

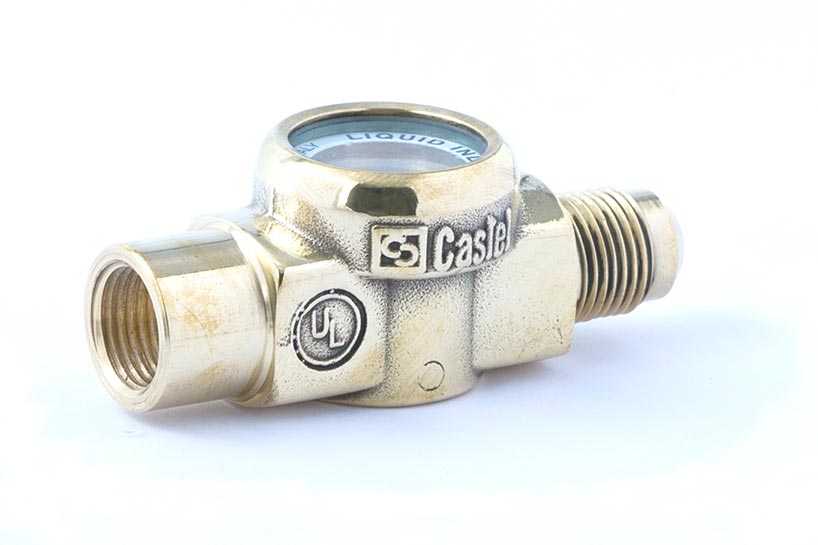

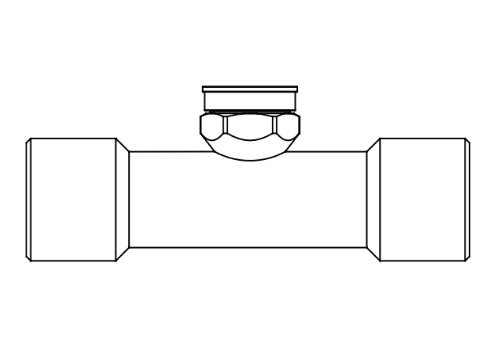

Connections: Flare – male/male  Flare – male/female  ODS,  saddle
Suitable for: R134a, R513A, R449A, R407C, R407F, R404A, R507 en R410A
Maximum pressure (PS): 45 bar
Temperature range (TS): -40 to +120 ºC

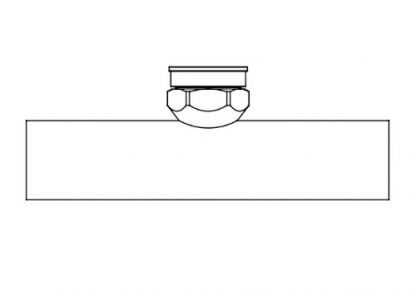

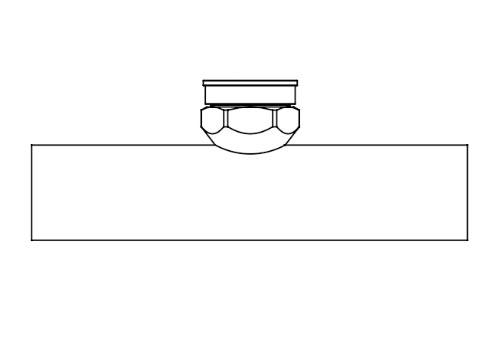

Temperature range (TS): -30 to +110  ºC  (type 3770)

Choose the type(s) you need and add to RFQ.
We will quote you a price within one working day.

  • Returning customers can login to see gross prices.
  • See table below in tabs for specifications of all types.
SKU: N/A Category: Tags: , , ,

Description

Castel sight glasses indicate by means of a visual indication whether there is moisture in the refrigerant. In the case of a yellow sight glass, moisture is present and the filter drier must be replaced. It is advisable to place a valve after the sight glass so that you can easily replace the filter drier. The presence of vapor bubbles in the sight glass indicates flash gas in the liquid line.

These HFC / HFO Castel sight glasses are suitable for all non-corrosive refrigerants.

Please see next tab for all types and specifications
